Petrol/Oil Suction & Delivery
- SKU:
- petroloilsuctiondelivery

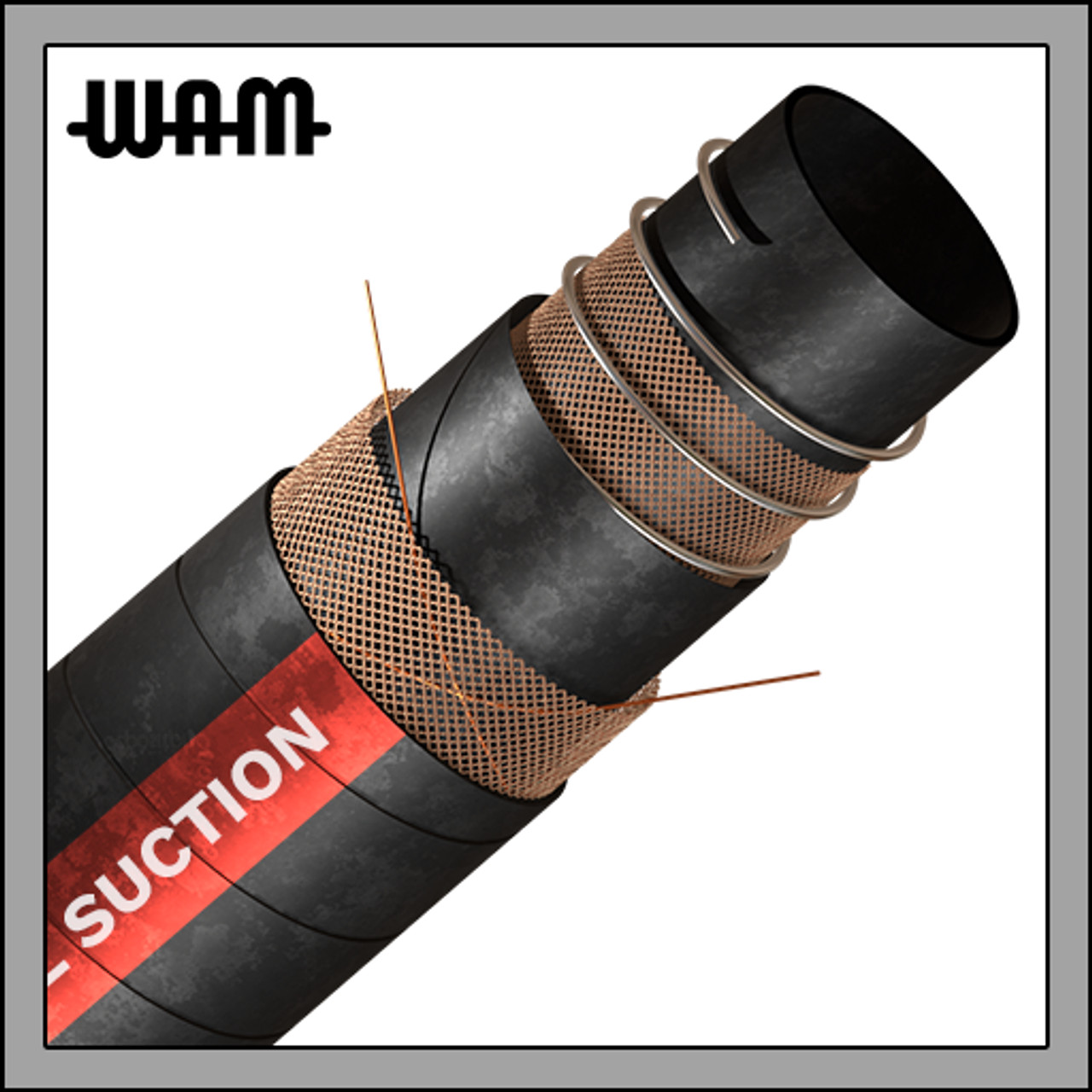

Mandrel built hose designed for general purpose suction & delivery of gasoline, oil, and other petroleum based products.
- Min Working Temp: -20°C
- Max Working Temp: +80°C
- Tube Material: Rubber
- Reinforcement: Synthetic braid & steel wire helix
- Cover Material: Rubber
| Code | ID Size (mm) | OD Size (mm) | Working Pressure (psi) | Burst Pressure (psi) | Coil Length(s) (m) |
|---|---|---|---|---|---|
| Z109-019 | 19 | 29 | 175 | 525 | 60 |
| Z109-022 | 22 | 31 | 175 | 525 | 60 |
| Z109-025 | 25 | 34 | 175 | 525 | 60 |
| Z109-028 | 28 | 38 | 175 | 525 | 60 |
| Z109-032 | 32 | 42 | 175 | 525 | 60 |
| Z109-038 | 38 | 48 | 175 | 525 | 60 |
| Z109-044 | 44 | 56 | 175 | 525 | 60 |
| Z109-051 | 51 | 63 | 175 | 525 | 60 |
| Z109-057 | 57 | 69 | 150 | 450 | 30 |
| Z109-064 | 64 | 76 | 150 | 450 | 30 |
| Z109-070 | 70 | 83 | 150 | 450 | 30 |
| Z109-076 | 76 | 91 | 150 | 450 | 30 |
| Z109-076-20BAR | 76 | 91 | 300 | 900 | 30 |
| Z109-089 | 89 | 104 | 150 | 450 | 30 |
| Z109-100 | 100 | 118 | 150 | 450 | 30 |
| Z109-100-20BAR | 100 | 118 | 300 | 900 | 30 |
| Z109-114 | 114 | 130 | 150 | 450 | 30 |
| Z109-127 | 127 | 143 | 150 | 450 | 30 |
| Z109-152 | 152 | 169 | 150 | 450 | 30 |
| Z109-152-20BAR | 152 | 169 | 300 | 900 | 30 |
| Z109-200 | 200 | 224 | 150 | 450 | 12 |
