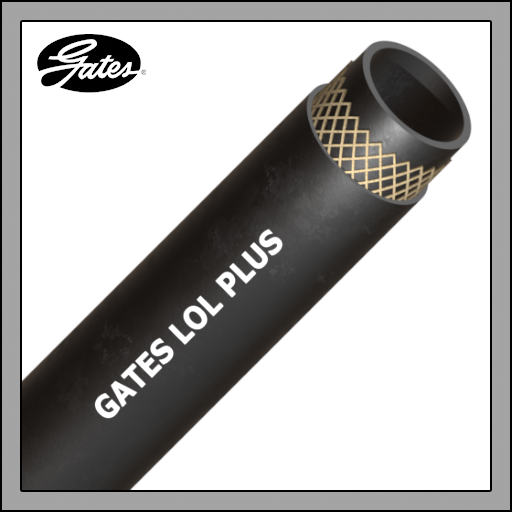

Gates Pushloc LOLA+
- SKU:
- gatespushloclola+
Recommended for petroleum–based hydraulic oils, water, glycol anti–freeze solutions, engine lubricating oils and air; Lock–On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application.
- Available in Black or Blue
- Min Working Temp (C): -40
- Max Working Temp (C): +100
- Tube Material: Black C Nitrile Rubber
- Reinforcement: One fiber braid
- Cover Material: Black or Blue C Nitrile Rubber
| Code | ID Size (mm) | OD Size (mm) | Working Pressure (psi) | Burst Pressure (psi) | Coil Length(s) (m) | Min Bend Radius (mm) |
|---|---|---|---|---|---|---|
| 3284-2500 | 5 | 10 | 300 | 1200 | 91 | 76 |
| 3284-2501 | 6 | 12 | 300 | 1200 | 91 | 76 |
| 3284-2502 | 8 | 14 | 300 | 1200 | 91 | 76 |
| 3284-2503 | 10 | 16 | 300 | 1200 | 91 | 76 |
| 3284-2504 | 13 | 20 | 300 | 1200 | 91 | 127 |
| 3284-2505 | 16 | 24 | 300 | 1200 | 76 | 152 |
| 3284-2506 | 19 | 27 | 300 | 1200 | 69 | 178 |
