Asphalt Hose
- SKU:
- asphalthose

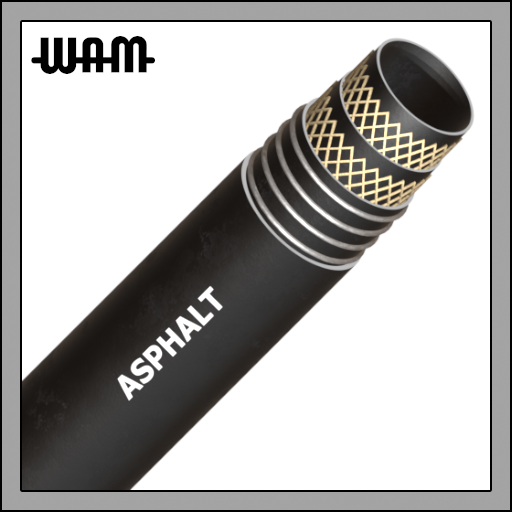

Wam Asphalt Hose for suction and discharge of Tar and Asphalt in road construction up to 180°C
- Min Working Temp: -40°C
- Max Working Temp: 180°C
- Tube Material: Rubber
- Reinforcement: Braided, 2 high tensile steel wires
- Cover Material: Abrasion and hot asphalt resistant
| Code | ID Size (mm) | OD Size (mm) | Working Pressure (psi) | Burst Pressure (psi) | Coil Length(s) (m) | Bend Radius (mm) | Mass (g/m) |
|---|---|---|---|---|---|---|---|
| S30100-038 | 38 | 56 | 18 | 54 | 30 | 228 | 1825 |
| S30100-051 | 51 | 71 | 18 | 54 | 30 | 306 | 2761 |
| S30100-063 | 63 | 83 | 10 | 30 | 30 | 381 | 3178 |
| S30100-076 | 76 | 97 | 10 | 30 | 30 | 457 | 4180 |
| S30100-090 | 90 | 113 | 10 | 30 | 30 | 534 | 5179 |
| S30100-102 | 102 | 126 | 10 | 30 | 30 | 610 | 6178 |
